Factory sale 50T vertical LSR injection molding machine

FOB Reference Price:Get Latest Price
US $38,900-39,699 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
LSR injection molding machine
Style:
Vertical
Brand Name:
TYM
Model Number:
TYM-L2428
Place of Origin:
Guangdong, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
6g
Injection Rate:
30g/s
Clamping Force:
50T
Opening Stroke:
100-400mm
Power(W):
12.1KW
Certification:
CE ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Factory sale 50T vertical LSR injection molding machine
Tie-bars sapce:
240x280mm
Ejection force:
4.3T
Ejection stroke:
150mm
Pump pressure:
21Mpa
Machine weight:
2.2T
Machine dimension(L*W*H):
1.4x1.5x3.15m
Business type:
Manufacturer
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden box
Port
Guangzhou
Lead Time :
35 days after order confirmed

Factory sale 50T vertical LSR injection molding machine

Product Description

_01

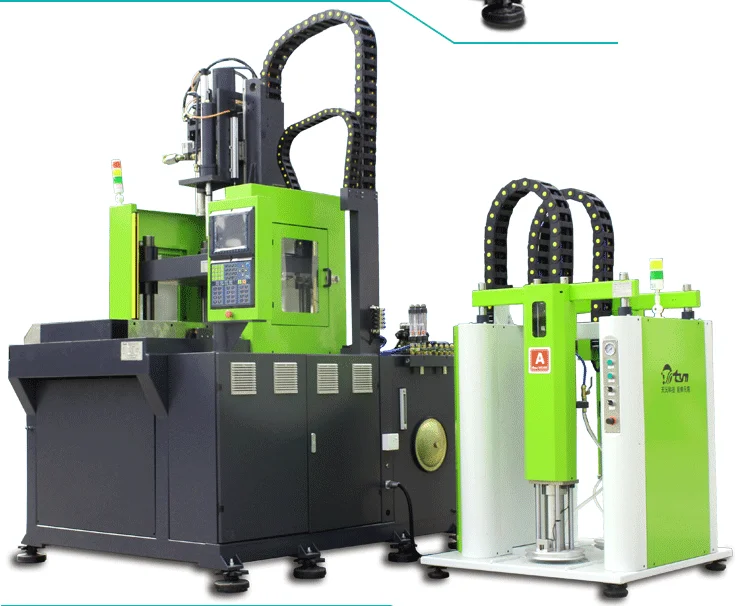

Vertical Liquid Silicone Rubber (LSR) injection molding machine

Closing the mould downwards, two kinds of models can be chosen  single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency. The sliding out structure on the machine makes the production more conveniently and more safer. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts with inserts.



The main feature of the vertical LSR molding machine:

A. Advanced sliding rail structure, which can reduce the oil pollution and make the machine to work faster and steadier.

B. Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurate.

C. Meet the requirements on multi-station production.

D. High-performance servo motor system is installed, which can guarantee the machine to work more accurate and more energy-saving.



ITEM

DESCRIPTION

UNIT

TYM-L2428

TYM-L4048

TYM-L5058

TYM-L6068

TYM-L8080

Injection Unit

Shot Volume

g

6

165

165

300

1000

Injection Rate

g/s

30

30

30

30

30

Injection Pressure

Kg/cm2

200

200

200

200

200

Clamping Unit

Clamping Force

T

50

95

130

150

250

Opening Stroke

mm

100-400

250-550

250-550

250-550

250-550

Tie-Bars Space

mm

240*280

400*480

500*580

600*680

800*800

Ejection Force

T

4.3

4.3

4.3

4.3

4.3

Ejection Stroke

mm

150

150

150

150

150

Pump Pressure

Mpa

21

21

21

21

21

Others

Motor Power

KW

12.1

12.1

12.1

12.1

12.1

Machine Weight

T

2.2

2.8

3.9

4.7

5

Machine Dimension

m

1.4*1.5*3.15

2.2*1.5*3.6

2.5*1.6*3.6

2.7*1.75*3.6

2.8*1.97*3.6

_03_04_05





Product Features

Application

77

Working Principle
