Factory sale 130T LSR injection molding machine for Laryngeal mask

FOB Reference Price:Get Latest Price
US $45,900-46,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
LSR injection molding machine
Style:
Vertical
Brand Name:
TYM
Model Number:
TYM-L5058
Place of Origin:
Guangdong, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
165g
Injection Rate:
30g/s
Clamping Force:
130T
Opening Stroke:
250-550mm
Power(W):
12.1KW
Certification:
CE ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Factory sale 130T LSR injection molding machine for Laryngeal mask
Injection pressure:
700kg/c㎡
Tie-bars sapce:
500x580mm
Ejection force:
4.3T
Ejection stroke:
150MM
Pump pressure:
21Mpa
Machine weight:
3.9T
Machine dimension(L*W*H):
2500x1600x3600mm
Business type:
Manufacturer
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case
Port
Guangzhou
Lead Time :
Shipped in 35 days after payment

Factory sale 130T LSR injection molding machine for Laryngeal mask

Product Description

_01

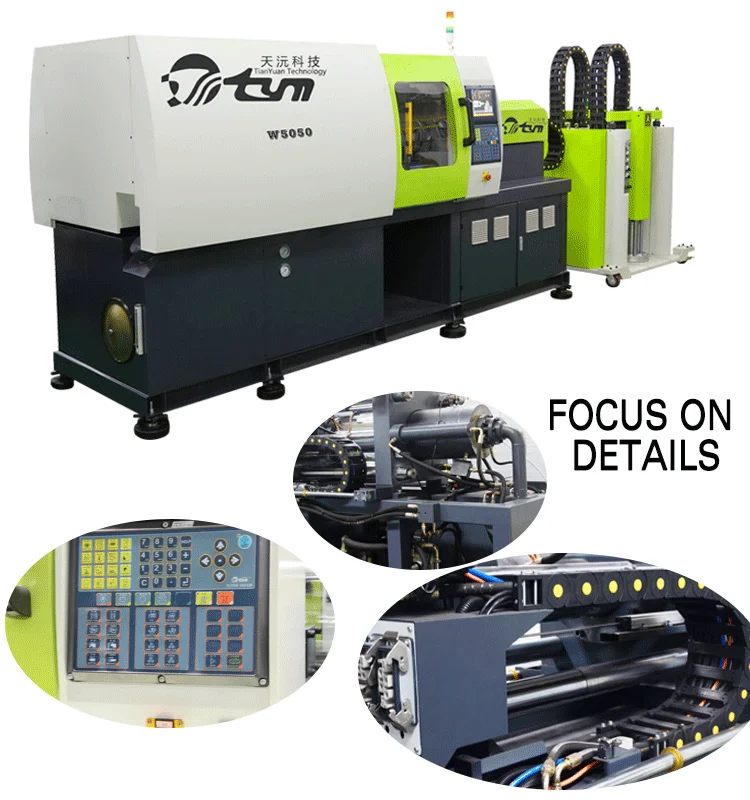

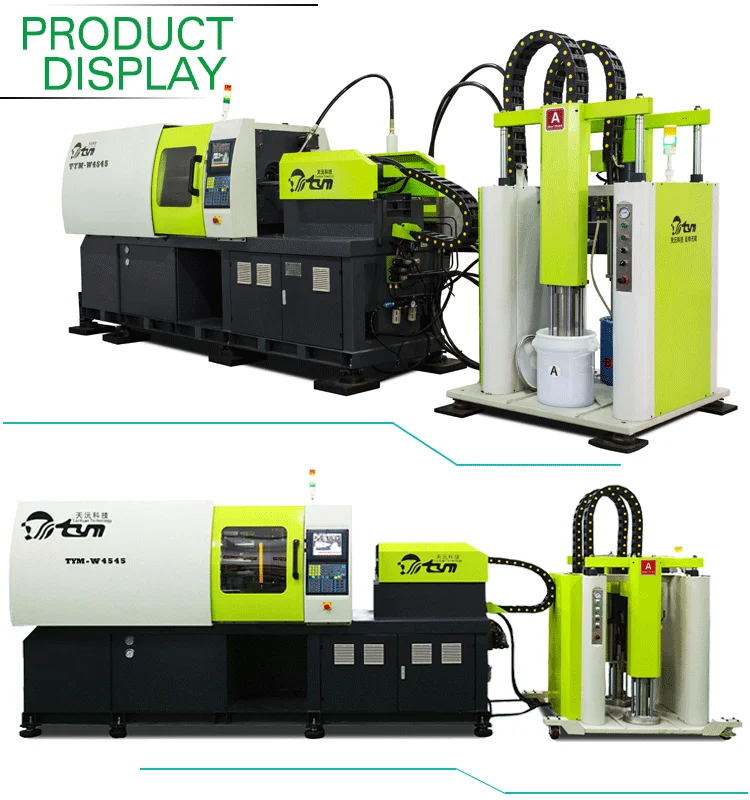

Horizontal Liquid Silicone Rubber (LSR) injection molding machine

Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.



The main feature of the horizontal LSR molding machine:

A.Newly-optimized integrated all-in-one design.

B. Meet multiple requirements on the automatic manufacturing technique for LSR products.

C. Shorter the mould closing and opening time, improve the production efficiency.

D. Remote control function.

E. Multi-section mould closing and opening and injection, speed adjusting stepless.



ITEM

DESCRIPTION

UNIT

TYM-W4040

TYM-W4545

TYM-W5050

TYM-W5555

Injection Unit

Shot Volume

g

165

165

300

300

Injection Rate

g/s

30

30

30

30

Injection Pressure

Kg/cm2

200

200

200

200

Clamping Unit

Clamping Force

T

120

130

150

160

Opening Stroke

mm

215-615

215-615

215-615

215-615

Tie-Bars Space

mm

400*400

450*450

500*500

550*550

Ejection Force

T

4.3

4.3

4.3

4.3

Ejection Stroke

mm

150

150

150

150

Pump Pressure

Mpa

21

21

21

21

Others

Motor Power

KW

12.1

12.1

12.1

12.1

Machine Weight

T

2.8

3.5

4.1

4.9

Machine Dimension

m

4.1*1.5*1.95

4.1*1.6*2.0

4.1*1.6*2.3

4.2*1.6*2.4



_03_04



Product Features

_06

Application

77



Working Principle

_08 _09
