50-500T High efficiency Energy-saving lsr injection moulding machine for sale

FOB Reference Price:Get Latest Price
US $49,999-59,999 / Sets | 1 Set/Sets (Min. Order)
Clamping Force:
150T
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 41% - 50%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Overview
Quick Details
Distance between Tie Bars:
150mm
Condition:
New
Type:
liquid silicone rubber injection molding
Style:
Vertical
Brand Name:
TYM
Model Number:
TYM-L6068
Place of Origin:
Guangdong, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
300g
Injection Rate:
30g/s
Opening Stroke:
250mm-550mm
Power(W):
12.1KW
Certification:
CE
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
1 Year
Injection pressure:
200kg/cm2
Opening stroke:
250mm - 550mm
Pump pressure:
21Mpa
Ejection Stroke:
150mm
templete dimension:
600mm *680mm
Dimension(L*W*H):
2700mm *1750mm * 3600mm
Voltage:
380V or based on the detailed requests
Ejection force:
4.3T
Weight:
4.7T
Supply Ability
Supply Ability:
10000000 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard plywood case or based on the detailed request of our client
Port
Any China port

50-500T High efficiency Energy-saving lsr injection moulding machine for sale

Product Description

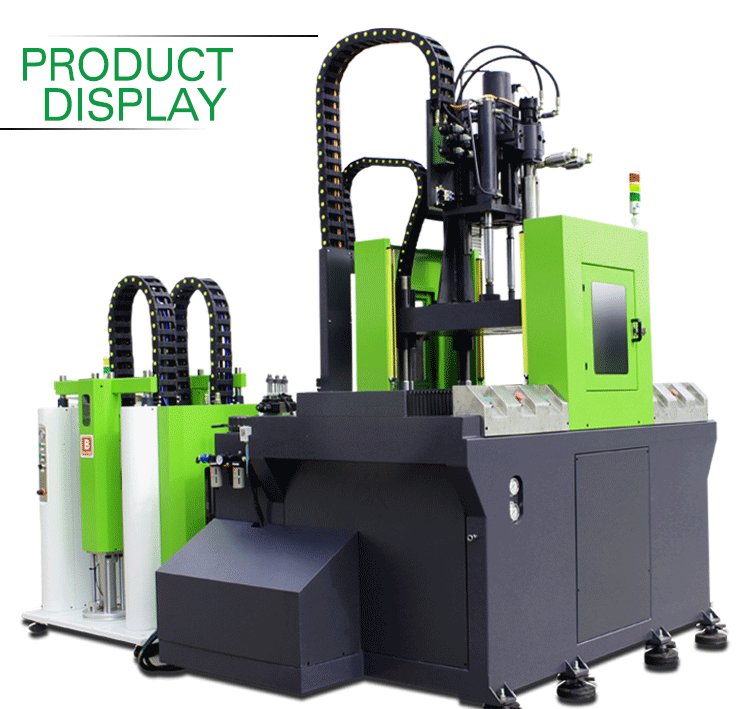

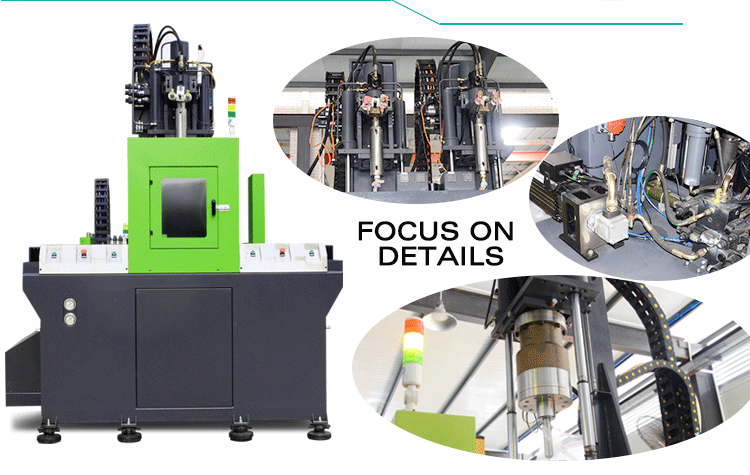

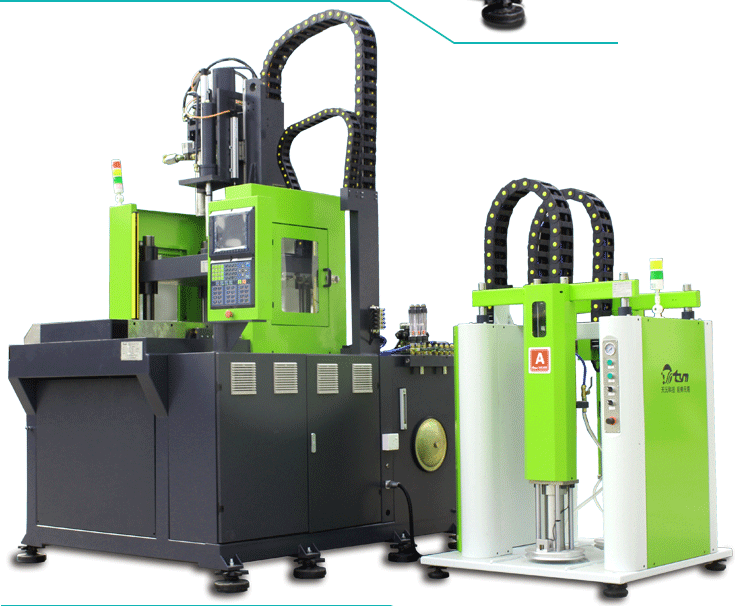

Vertical Liquid Silicone Rubber (LSR) injection molding machine

Closing the mould downward, two kinds of models can be chose  single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency. The sliding out structure on the machine makes the production more conveniently and more safely. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts which has inserts.



The main feature of the vertical LSR molding machine:

A. Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster

     and steadier.

B. Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.

C. Meet the requirements on multi-station production.

D. High-performance servo motor system is installed, which can guarantee the machine work more

     accurately and more energy-savingly.
